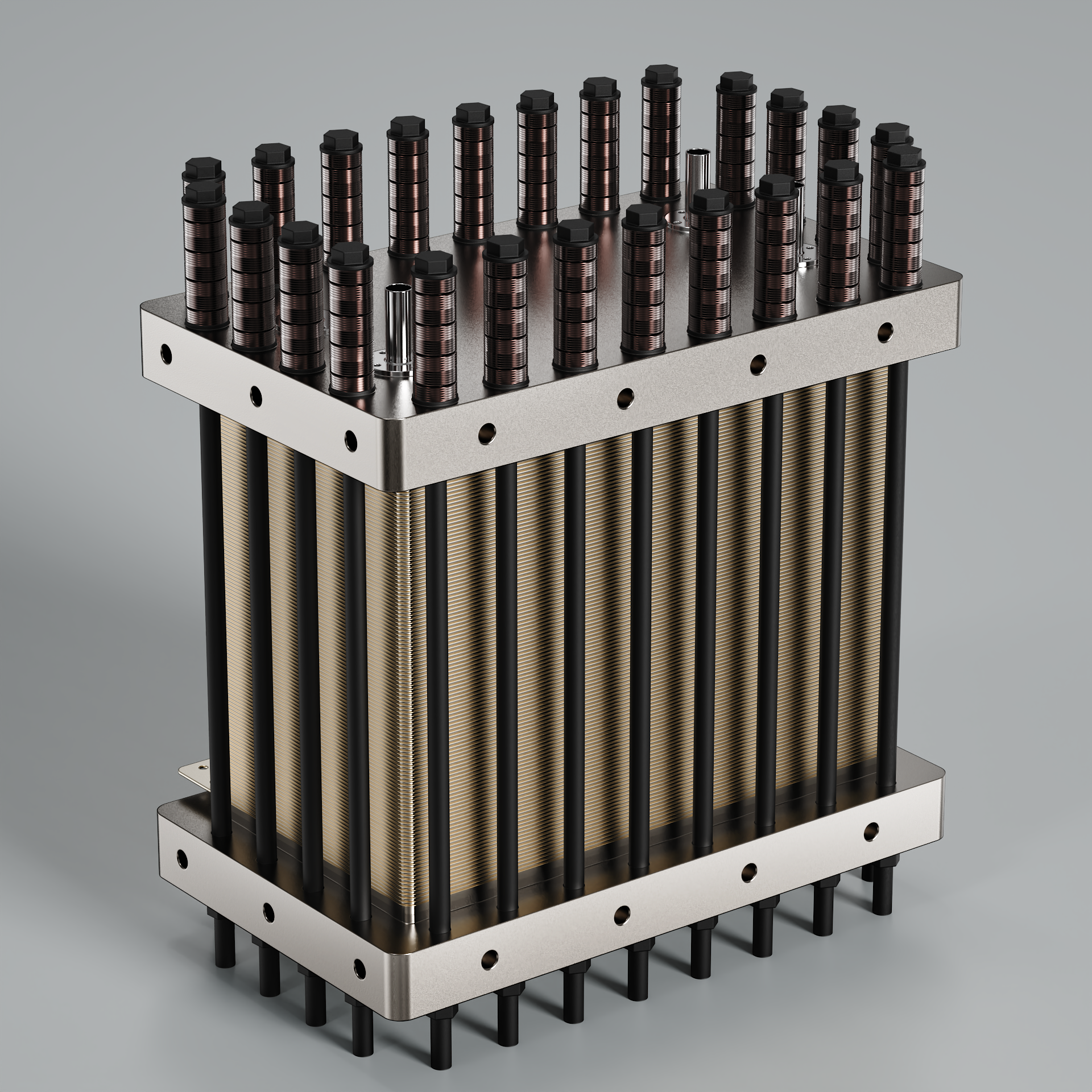

The AEMHY anion exchange membrane (AEM) electrolyzer uses non-precious-metal catalysts and the QZ-AEM membrane developed in-house. It offers a wide load range and high reliability for renewable hydrogen production, industrial green hydrogen and distributed hydrogen projects. The stack family is organized by single-cell active area into three series, covering hydrogen output from 2 Nm³/h to 200 Nm³/h.
Series Overview
| Series | Single-cell active area | Maximum hydrogen output | Model | Typical application |
|---|---|---|---|---|
| Small | 100 cm² | 4 Nm³/h | QZC-2 (2 Nm³/h), QZC-4 (4 Nm³/h) | Laboratory testing, distributed hydrogen, demonstration projects |
| Medium | 400 cm² | 40 Nm³/h | QZC-40 | Industrial on-site hydrogen, industrial park supply |
| Large | 2500 cm² | 200 Nm³/h | QZC-200 | Large-scale green hydrogen, solar and wind coupled projects |
QZC-2 Technical Parameters
| Item | Value | Item | Value |
|---|---|---|---|
| Model | QZC-2 | Rated hydrogen output | 2 Nm³/h |
| DC energy consumption | up to 4.3 kWh/Nm³ at rated conditions | Operating temperature | 60°C |
| Maximum operating pressure | 3.2 MPa | Load range | 5%-120% |
| Current density | 1.3 A/cm² at 60°C and 3.2 MPa | Design life | Approx. 10,000 h |
| Membrane | 80 μm QZ-AEM anion exchange membrane | Weight | Approx. 50 kg |
| Dimensions | 290 x 238 x 800 mm | Warranty | 1 year |
For detailed parameters of QZC-40 and QZC-200, please contact us for the model datasheet.
Key Advantages
Non-precious-metal catalyst system, free of iridium and other scarce noble metals
5%-120% load range for solar, wind and energy storage integration
Maximum operating pressure of 3.2 MPa for direct connection to high pressure hydrogen use
80 μm QZ-AEM membrane with an expected design life of approximately 10,000 hours
Modular design allows capacity expansion by combining series
Applications
The stacks are suitable for solar and wind hydrogen production, hydrogen energy storage, industrial parks, refining and chemicals, and green ammonia or green methanol projects. The system configuration is determined by hydrogen output, power conditions and local water quality.
Frequently Asked Questions
Can the AEM electrolyzer operate with variable renewable power?
Yes. It supports a 5%-120% load range and can be integrated with solar, wind and energy storage systems.
How do I select the right series?
Select by target hydrogen output: up to 4 Nm³/h for the 100 cm² series (QZC-2, QZC-4), up to 40 Nm³/h for the 400 cm² series, and up to 200 Nm³/h for the 2500 cm² series.
What is the DC energy consumption of QZC-2?
DC energy consumption is no more than 4.3 kWh/Nm³ at rated conditions.
How can I request a quotation?
Submit your project scale, target hydrogen output and power conditions through the Contact Us page.
